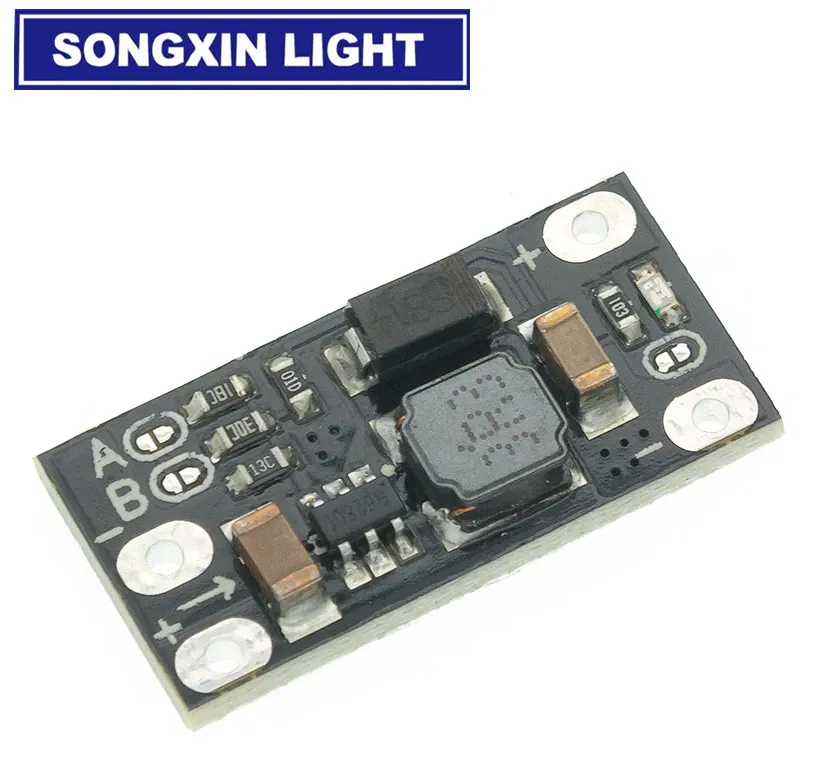

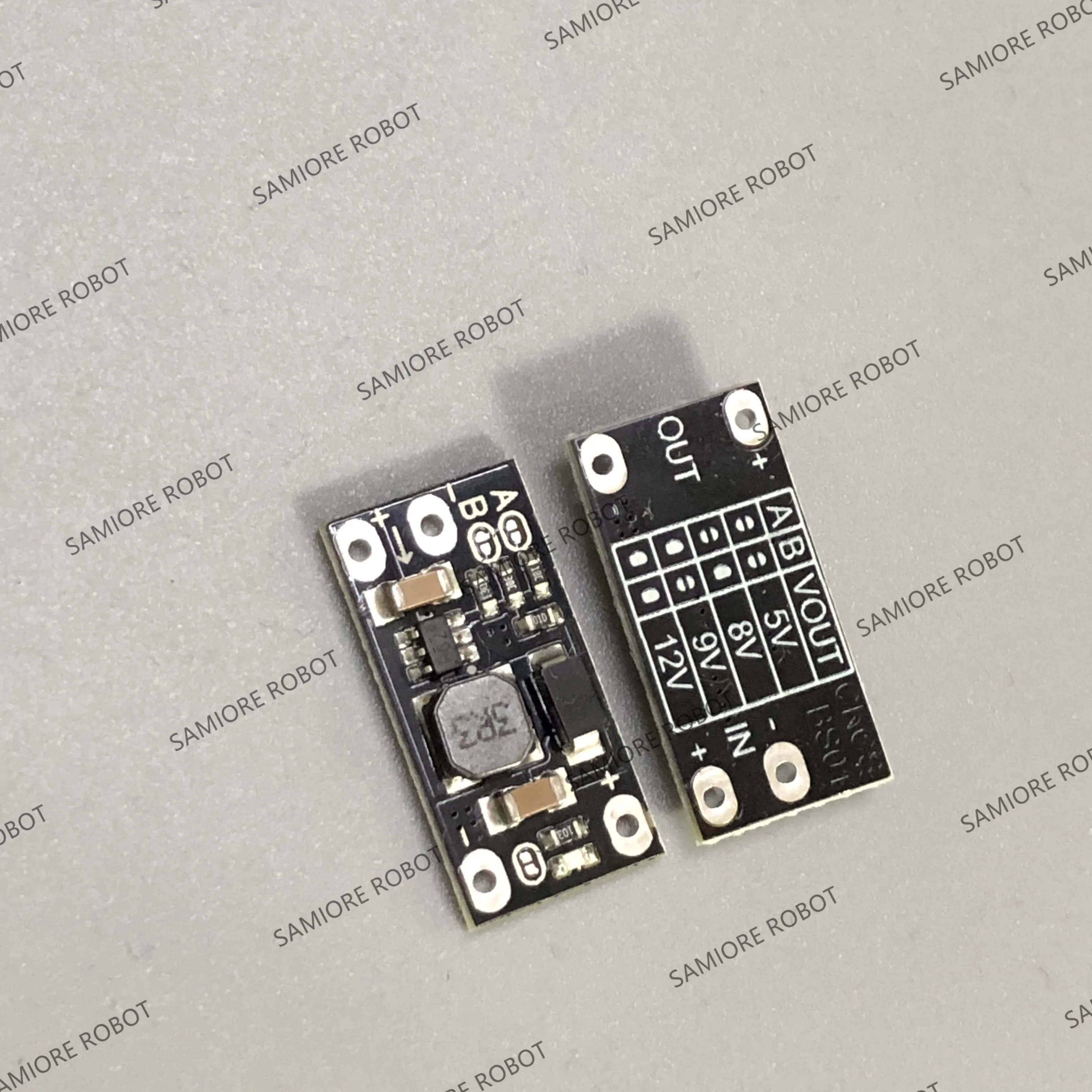

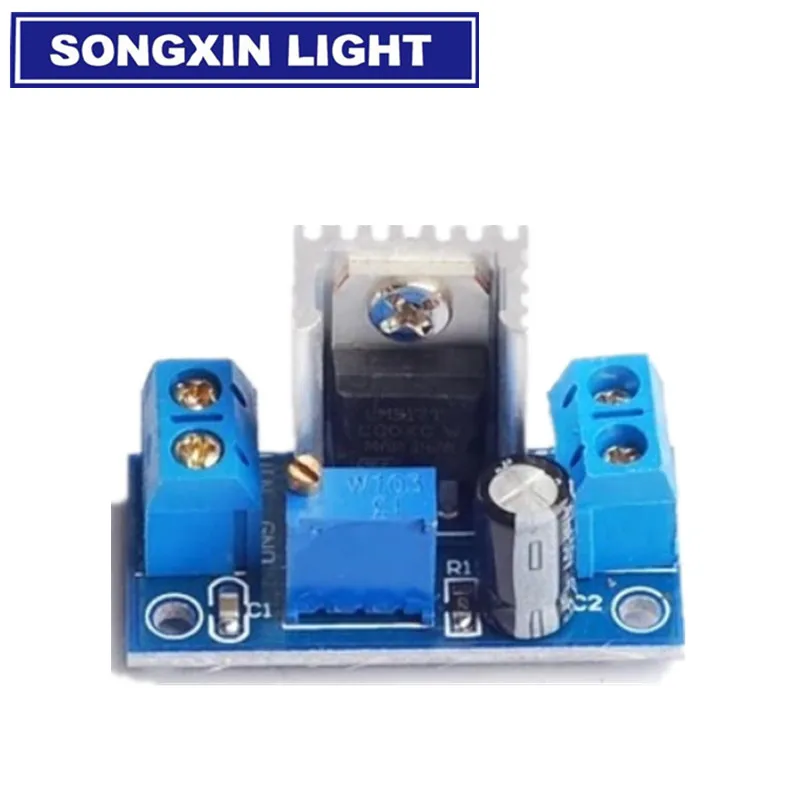

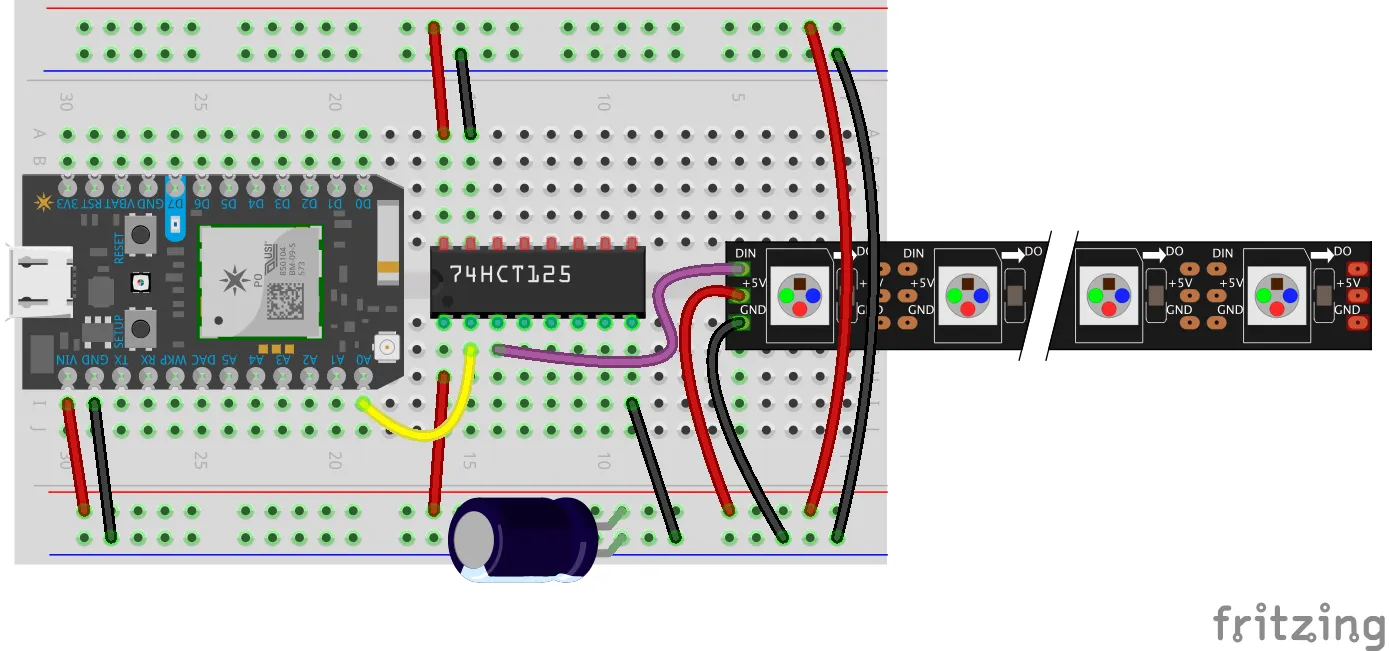

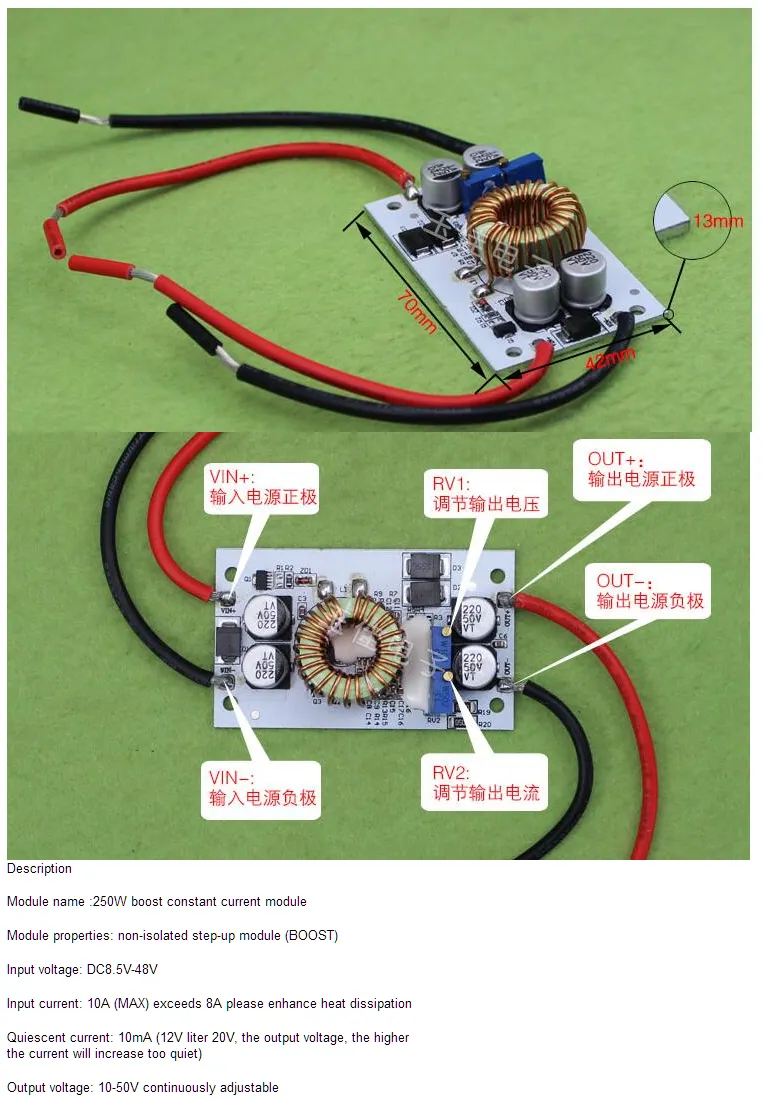

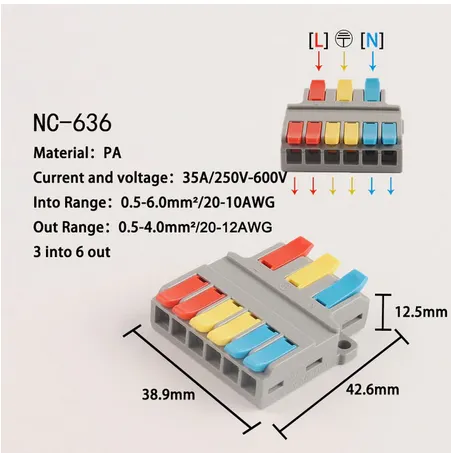

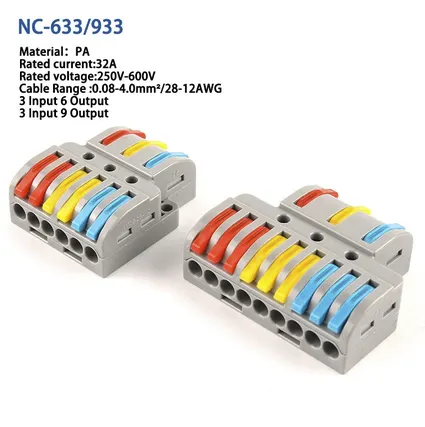

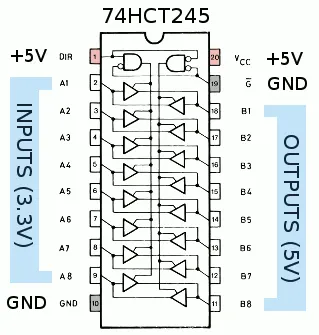

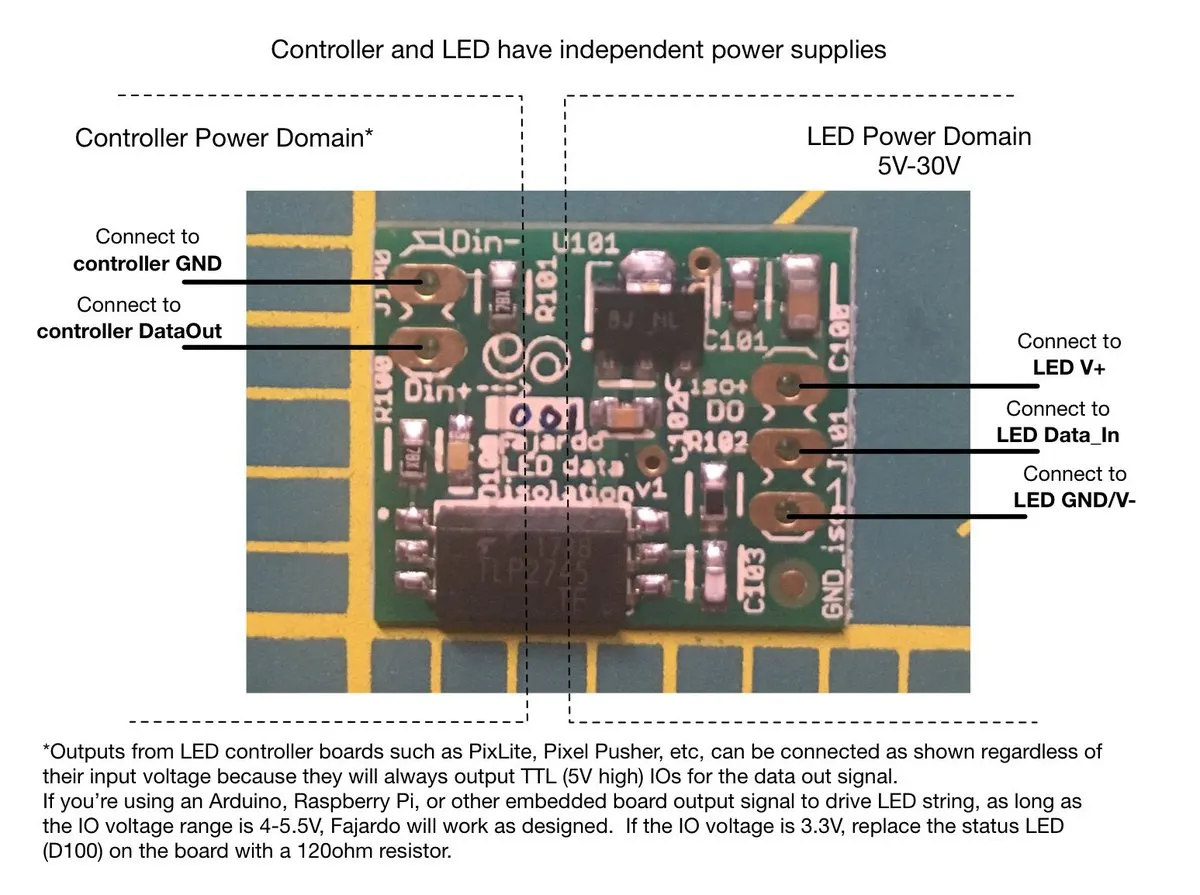

Phase Lights 2023 - Main Project Board # Power Module # Controller Power Boost # LED Power Boost # Saying No (temporarily) https://www.instructables.com/Copper-pipe-glockenspiel/ ## 250W Boost Non-Isolated Step-Up Module Silicone to metal tape for attaching strips permanently to metal core? https://www.mcmaster.com/7213A21?hidden=true/ side to side lights with bilateral bells # Host (Controller) Module ## Mini Boost Chip https://cdn.kinopio.club/gZzKIhcXGlt8frO5bWNOE/image.png Input voltage range: 2.5V ~ (VOUT-0.5V) ### Output performance: Take 3.7V lithium battery input as an example, it can output 5V1.2A, 8V0.7A, 9V0.6A, 12V0.5A.Make sure that the input current and output current do not exceed 1.5A. The output voltage can be set to 5V/8V/9V/12V, the default is 12V https://www.aliexpress.com/item/4001019640956.html?spm=a2g0o.detail.1000060.3.42ae53a1D4UAjW&hidden=true Mini Boost 1.5A https://www.tindie.com/products/essenceeng/fajardo-led-data-isolator?hidden=true/ Product size: 22 × 11 × 3.6mm The pad next to the LED indicator can also be turned off to turn off the indicator. ## LM317 Adjustable Voltage Regulator Power Supply Input and output voltage difference (VI-VO):
40Vdc (max); Output Solder Terminals (VCC / GND) Adjustable output voltage range: 1.2-37 V Input voltage: 4.2-40 V; https://www.aliexpress.com/item/32825846679.html?spm=2114.12010612.8148356.69.691b7110FPdtmo&hidden=true Output Current: 1.5A (minimum), 2.2A (typ); Input Screw Terminals (VCC / GND) Maximum Output Current:
3 / (Input Voltage - Output Voltage) # LED Trail Module ## Trail Skin ## Trail LED Strip ## Trail Bone ## Trail Power # Sensor Assembly Phase Lights 2023 - Main Project Board # Power Module # Controller Power Boost # LED Power Boost # Saying No (temporarily) https://www.instructables.com/Copper-pipe-glockenspiel/ ## 250W Boost Non-Isolated Step-Up Module Silicone to metal tape for attaching strips permanently to metal core? https://www.mcmaster.com/7213A21?hidden=true/ side to side lights with bilateral bells # Host (Controller) Module ## Mini Boost Chip https://cdn.kinopio.club/gZzKIhcXGlt8frO5bWNOE/image.png Input voltage range: 2.5V ~ (VOUT-0.5V) ### Output performance: Take 3.7V lithium battery input as an example, it can output 5V1.2A, 8V0.7A, 9V0.6A, 12V0.5A.Make sure that the input current and output current do not exceed 1.5A. The output voltage can be set to 5V/8V/9V/12V, the default is 12V https://www.aliexpress.com/item/4001019640956.html?spm=a2g0o.detail.1000060.3.42ae53a1D4UAjW&hidden=true Mini Boost 1.5A https://www.tindie.com/products/essenceeng/fajardo-led-data-isolator?hidden=true/ Product size: 22 × 11 × 3.6mm The pad next to the LED indicator can also be turned off to turn off the indicator. ## LM317 Adjustable Voltage Regulator Power Supply Input and output voltage difference (VI-VO):
40Vdc (max); Output Solder Terminals (VCC / GND) Adjustable output voltage range: 1.2-37 V Input voltage: 4.2-40 V; https://www.aliexpress.com/item/32825846679.html?spm=2114.12010612.8148356.69.691b7110FPdtmo&hidden=true Output Current: 1.5A (minimum), 2.2A (typ); Input Screw Terminals (VCC / GND) Maximum Output Current:
3 / (Input Voltage - Output Voltage) # LED Trail Module ## Trail Skin ## Trail LED Strip ## Trail Bone ## Trail Power # Sensor Assembly
