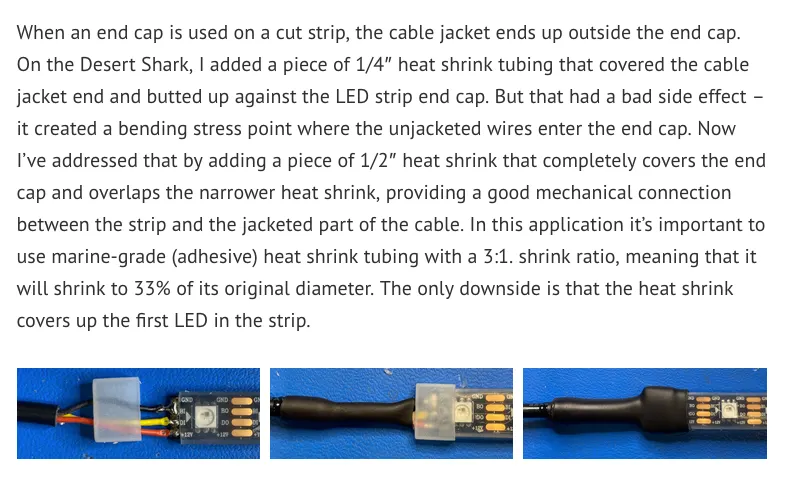

clear marine grade heat shrink 3:1 shrink ratio

rigid flat body

electrical connectors

waterproof connection

center trail link

The trail grip needs to hold the trail at a point along its length, which may be added in the middle of the trail without having to undo other connectors. It needs to hold the trail hardware gently enough that it doesn’t apply point force, but also it needs to hold firmly enough that when adjusting the position of other connectors during setup, the unpredictable and strong spring forces don’t undo the rest of the setup

2 pin waterproof connector

sensors and radio

⤥ hold position and rotation relative to

allow rotation and adjustment

↺ resist torque force

rigid flat body

trail grip and mount hardware

articulated arm

distribute force of gripping

1/4 20 thread with set nut (camera connector)

ground

🡭 resist shear force

trail

LED strip

⇹ hold position along length ↭

↺ resist torque force

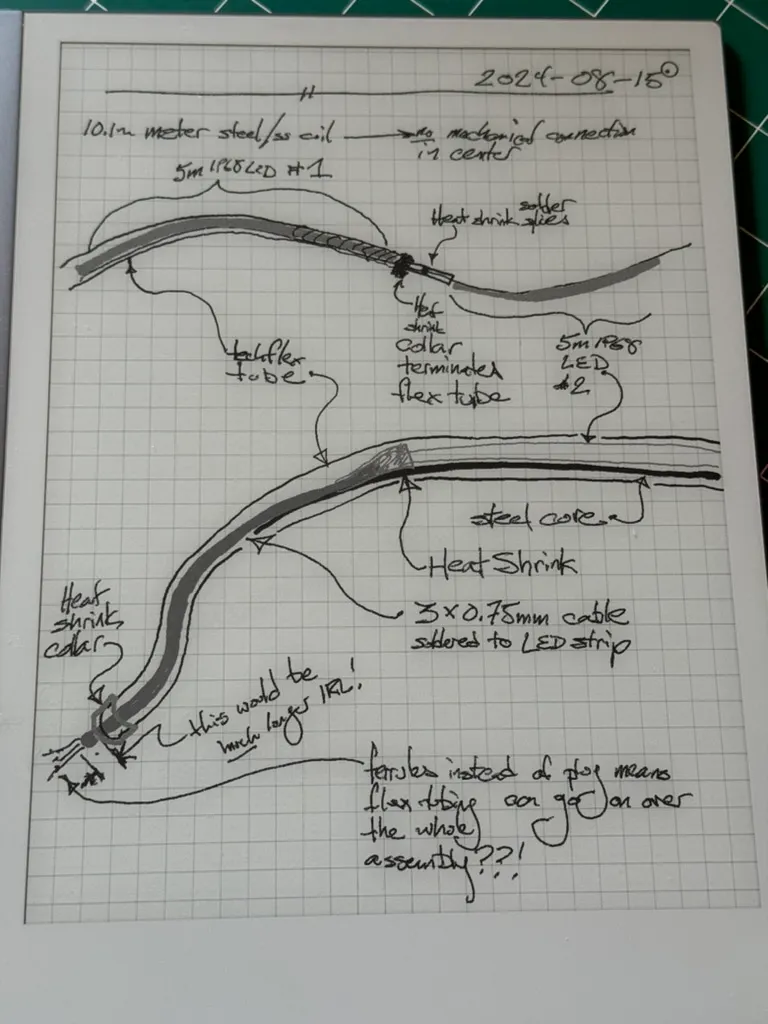

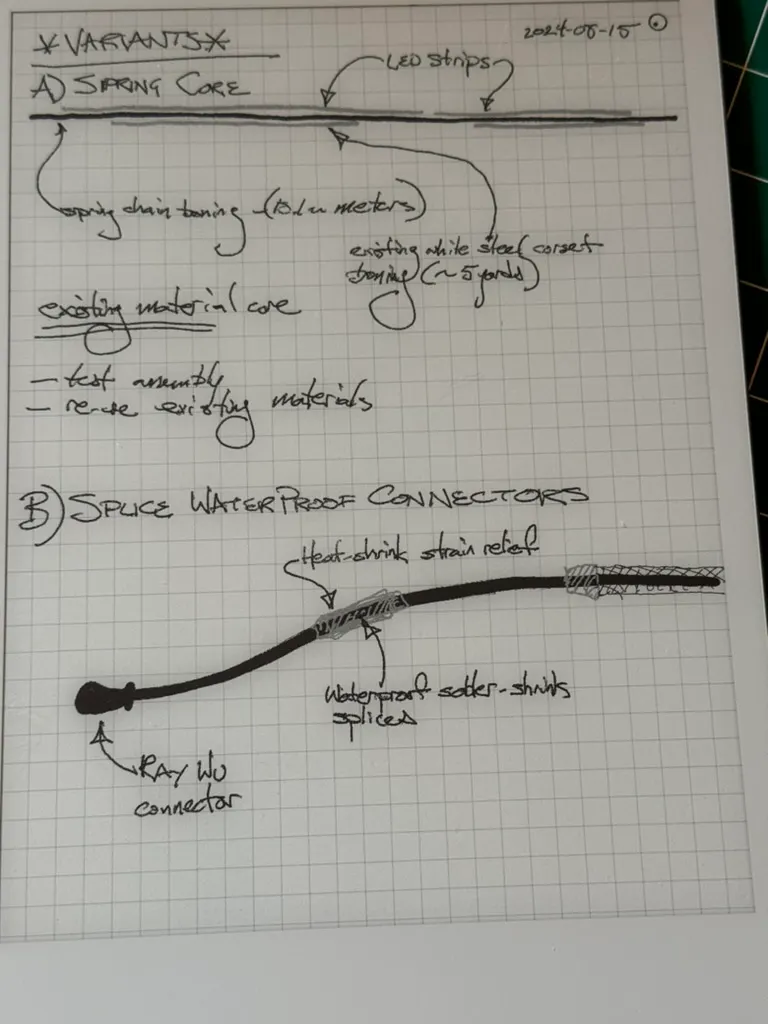

spring steel corset boning

trail

power injection cable

main power rail

power injection 3:2:3 waterproof connector

2 pin waterproof connector

? connection to power

sensors in jars

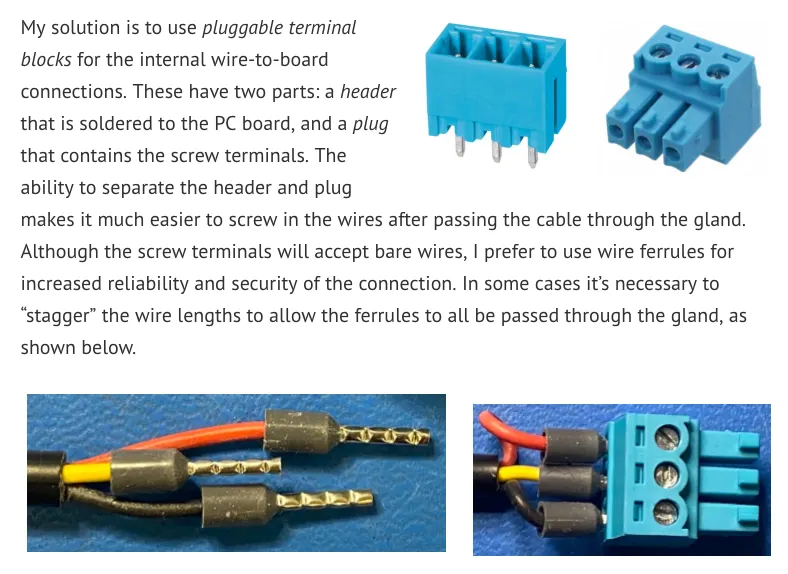

3-pin waterproof connector (plug)

controller

? data transmission

power injection 3:2:3 waterproof connector
